Product Overview

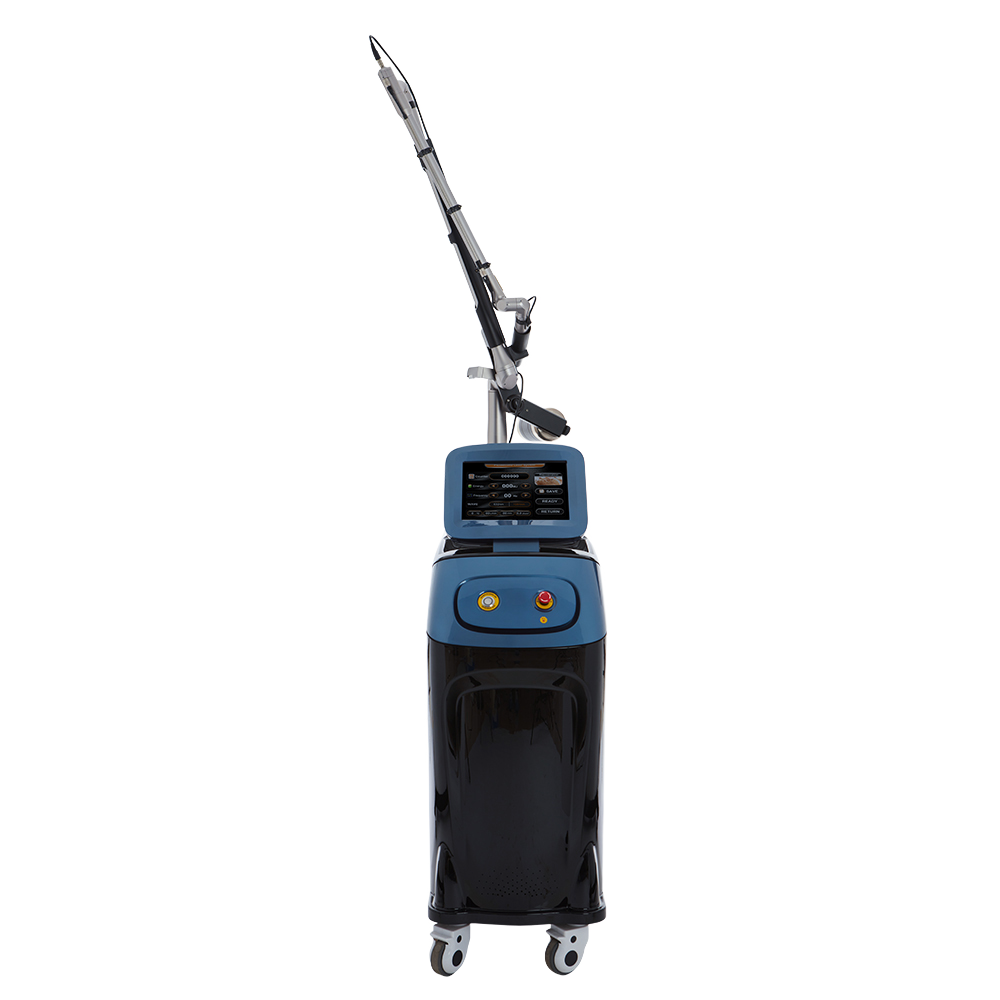

ND YAG Q-SWITCH Laser is a powerful, FDA-cleared platform for pigmentation removal, tattoo clearance, and skin rejuvenation. Designed with premium Korean optics and a single-cavity, dual-rod laser generator, it delivers up to 1300mJ per pulse with a 5ns pulse width—making it ideal for deep pigment fragmentation, minimal discomfort, and fast recovery. Suitable for all skin types, especially Asian skin.

How It Works

The Q-switched laser emits short, high-energy pulses at 532nm and 1064nm

Selectively absorbed by melanin, tattoo ink, and hemoglobin

Photomechanical effect shatters pigments into tiny particles

The body removes shattered pigments via lymphatic metabolism

Key Advantages

.3J

1.3J

High single pulse energy ensures powerful pigment removal.

1064

/532nm

1064/532nm

Dual wavelengths target various pigments and tattoos effectively.

5ns

Ultra-short pulse duration minimizes thermal damage.

–10mm

2–10mm

Adjustable spot size for precise or large-area treatments.

–10Hz

1–10Hz

Adjustable frequency for fast and efficient treatments.

1300mJ Energy. 5ns Pulse. Maximum Precision, Minimal Pain.

High-Energy Multi-Mode Output

Single-pulse energy up to 1300mJ and dual-pulse peak output up to 2600mJ allow flexible adjustment for varying pigment depths and skin conditions, delivering more thorough and consistent clearance.

Ultra-Short Pulse Precision

The 5ns ultra-short pulse confines energy precisely to pigment targets, enabling effective fragmentation while minimizing pain and unnecessary thermal diffusion.

Stable Beam Delivery with Adjustable Spot Sizes

A Korean-imported articulated arm ensures over 95% transmission efficiency, while adjustable 2–10mm spot sizes with uniform energy distribution support both precise targeting and large-area treatments.

Layer-Specific Wavelengths

The dual 532nm and 1064nm wavelengths target superficial and deep pigmentation respectively, while the anesthesia-free, consumable-free design streamlines procedures and reduces operating costs.

Technical Highlights

High-Energy, Stable Laser Platform

A high-powered dual-rod laser generator delivers up to 1300mJ per single pulse with stable output, forming a reliable foundation for effective pigment fragmentation and consistent results.

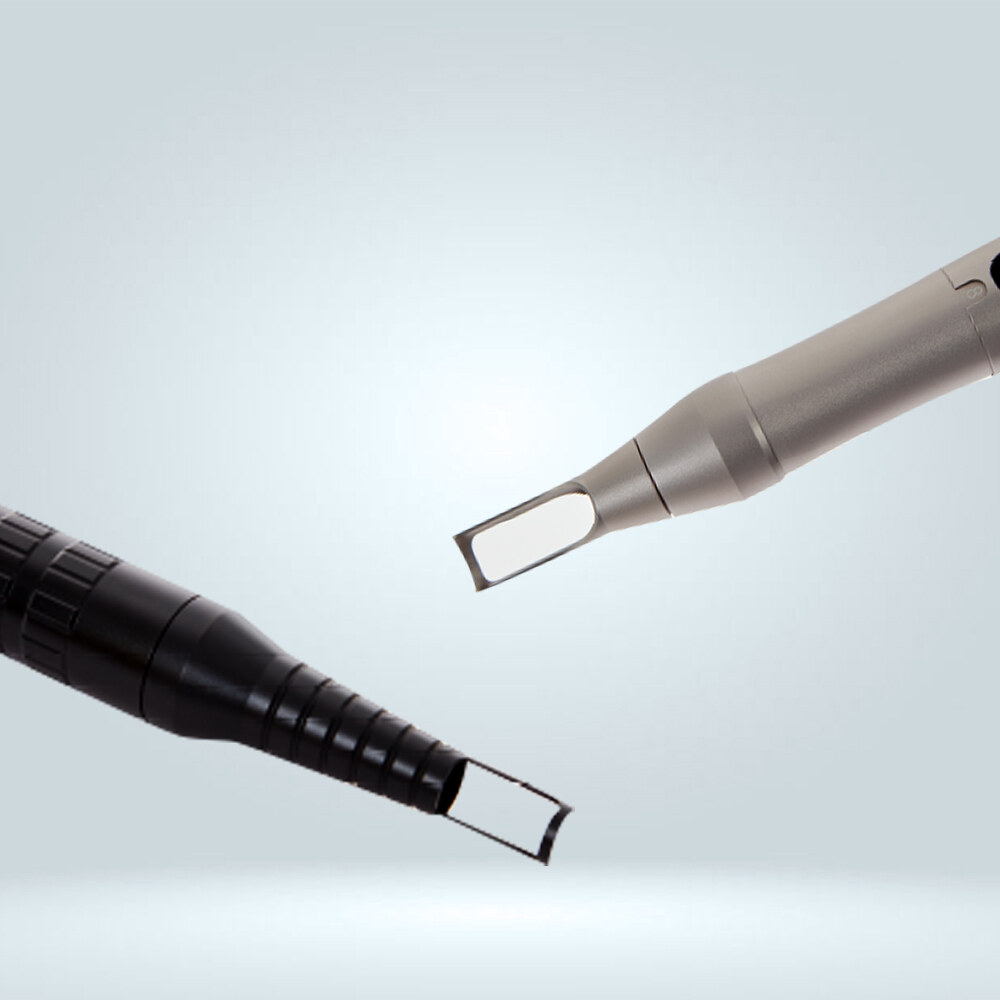

Precision Beam Delivery & Energy Control

The Korean-made 7-joint articulated arm achieves over 95% transmission efficiency, combined with adjustable spot sizes from 2–10mm for accurate energy coverage across various treatment areas.

Electro-Optic Q-Switch with Ultra-Short Pulse

Electro-optic Q-switch technology produces a flat-top beam with a 5ns pulse width, enabling efficient pigment shattering while minimizing thermal diffusion and tissue stress.

Multiple Output Modes for Expanded Indications

An optional quasi-long pulse mode extends applications beyond pigmentation to skin rejuvenation, pore tightening, and other dermatological treatments.

Industrial Reliability & Cost-Efficient Operation

The laser generator is sealed in a large-scale dust-free facility and supported by an intuitive interface with real-time safety monitoring. The consumable-free design ensures patient comfort while reducing long-term operating costs.

High-Energy, Stable Laser Platform

A high-powered dual-rod laser generator delivers up to 1300mJ per single pulse with stable output, forming a reliable foundation for effective pigment fragmentation and consistent results.

Precision Beam Delivery & Energy Control

The Korean-made 7-joint articulated arm achieves over 95% transmission efficiency, combined with adjustable spot sizes from 2–10mm for accurate energy coverage across various treatment areas.

Electro-Optic Q-Switch with Ultra-Short Pulse

Electro-optic Q-switch technology produces a flat-top beam with a 5ns pulse width, enabling efficient pigment shattering while minimizing thermal diffusion and tissue stress.

Multiple Output Modes for Expanded Indications

An optional quasi-long pulse mode extends applications beyond pigmentation to skin rejuvenation, pore tightening, and other dermatological treatments.

Industrial Reliability & Cost-Efficient Operation

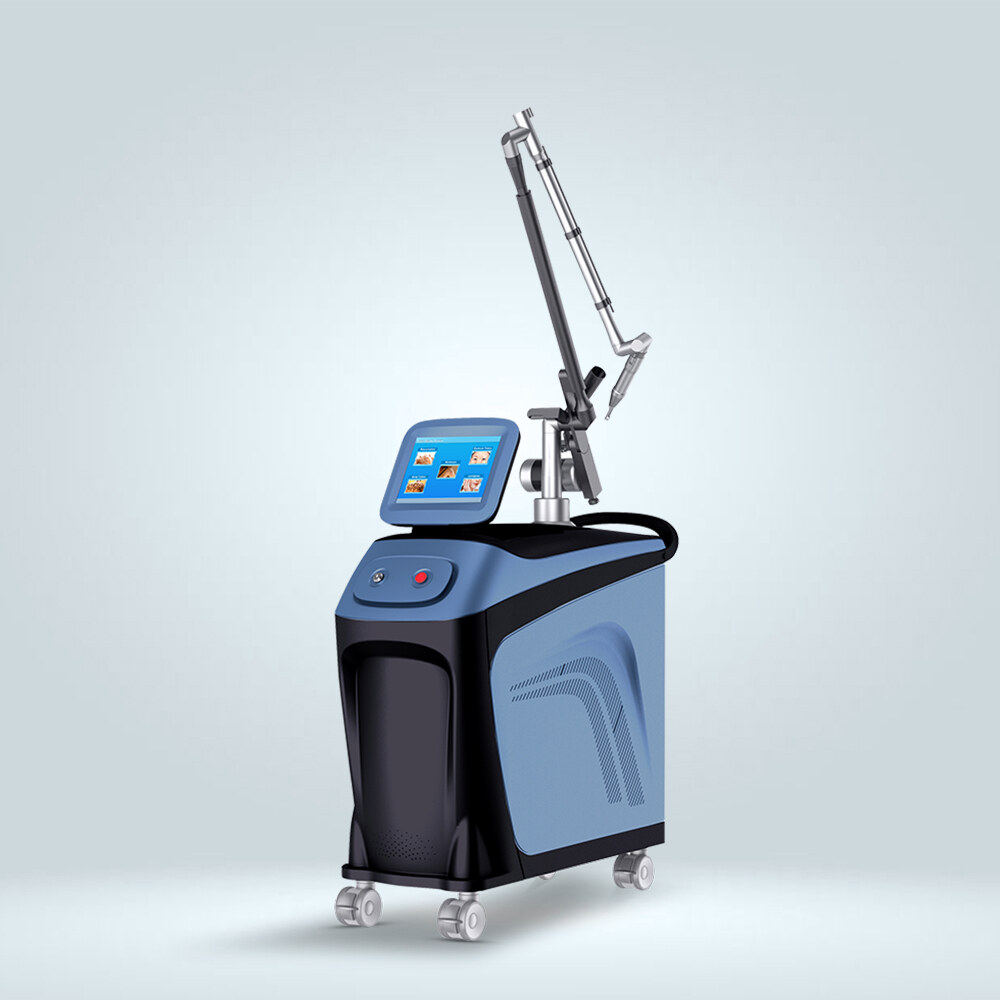

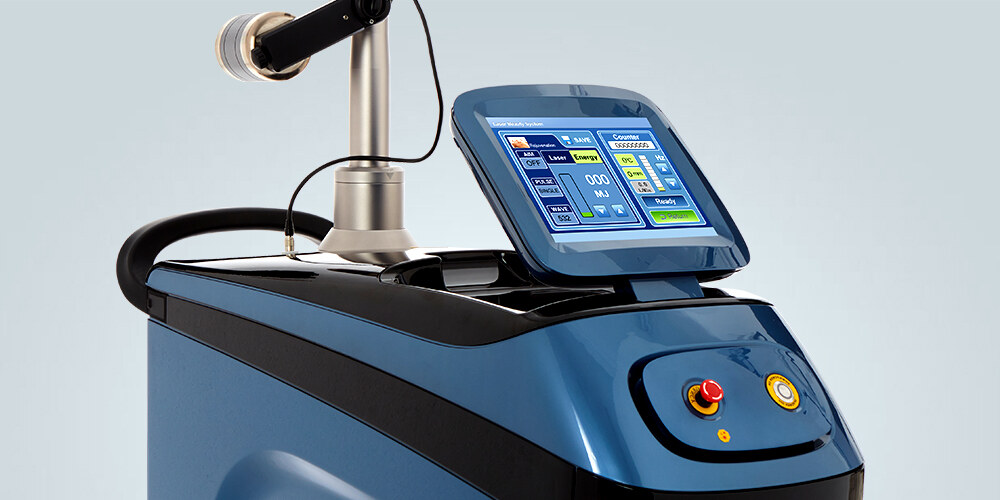

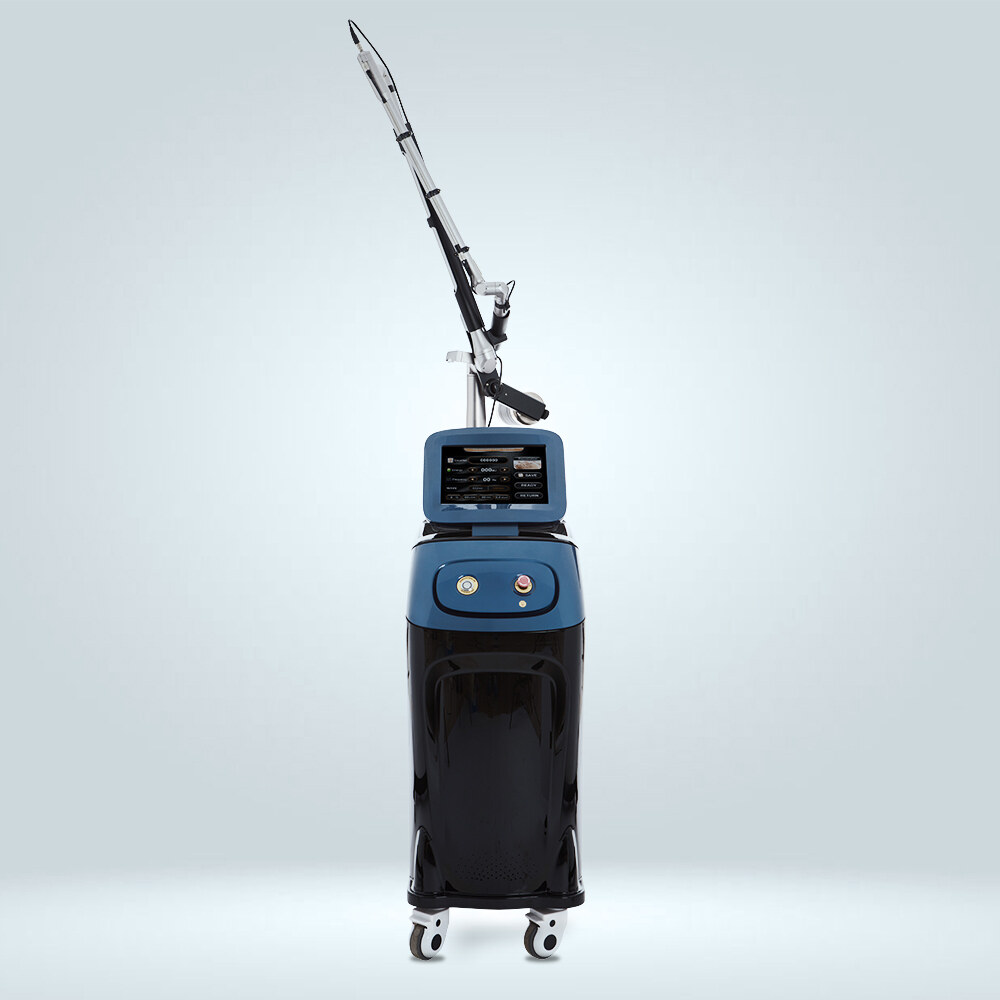

New Design

Not only technologically advanced and ergonomically designed, but also aesthetically pleasing with balanced proportions — that’s the charm of ADSS ND YAG Q-SWITCH Laser.

Functions

Skin Repair

Pigmented Lesion Treatment
Effectively removes freckles, age spots, melasma, café-au-lait spots, and other pigmentation.

Tattoo Removal
Precisely targets and breaks down black and colored tattoo pigments.
Deep Dermal Pigment Removal
Removes long-standing dermal pigmentation for even skin tone.

Skin Regeneration

Carbon Skin Rejuvenation
Refines pores, brightens skin, and improves texture with carbon-assisted treatment.
Non-Invasive Brightening
Fades discoloration and enhances overall skin tone without downtime; improves acne scars and post-inflammatory pigmentation.
