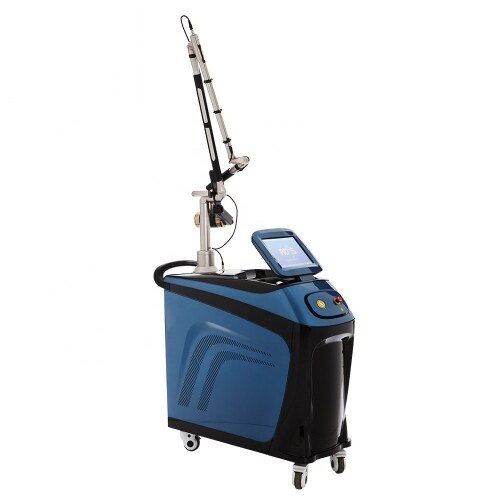

Q-Switched ND YAG Laser-FG2014

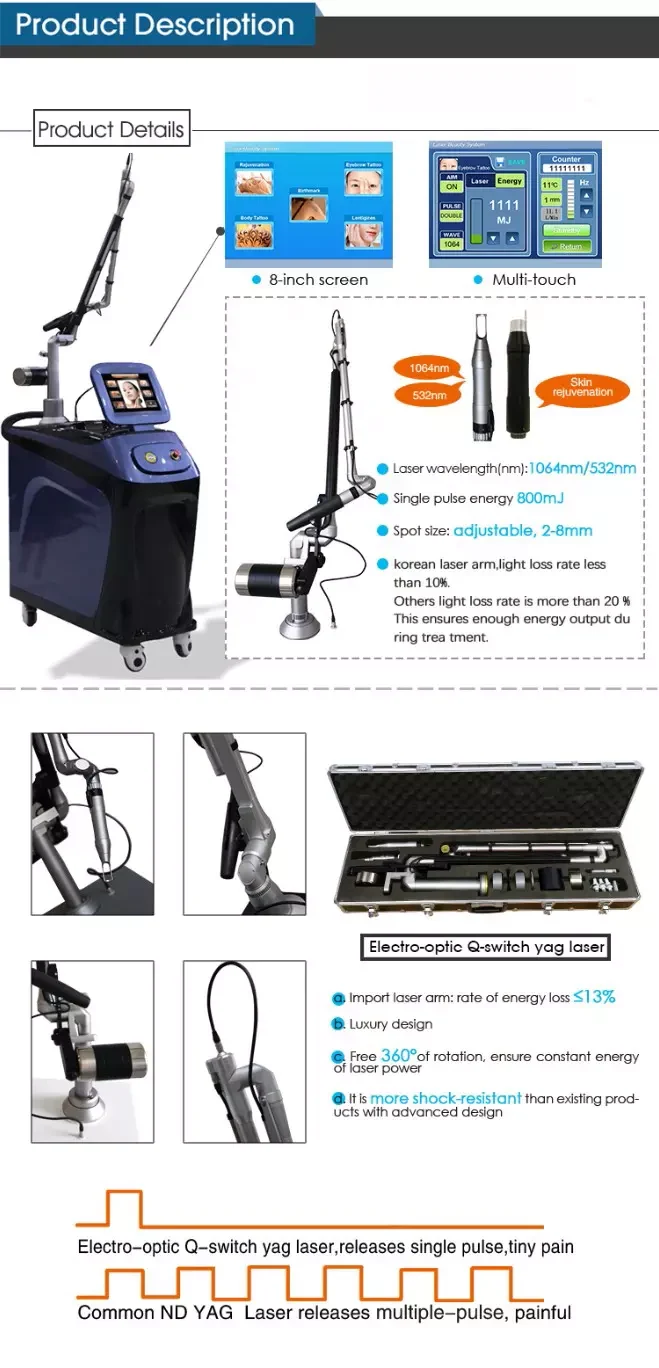

Product Description

  • FG2014
  • ADSS
  • By Air, By DHL/TNT/FEDEX/UPS Express door to door, By Sea
  • Professional Design Services With The Most Reasonable Expense
  • Inquiry Now

Introduction

Videos

Theory

Q-Switched ND YAG Laser-FG2014 Theory

Nd:Yag laser is named after the laser medium, Neodymium: yytrium-alumunium-garnet. This laser was specifically designed to help with pigmentation, reckless and also can help removing old tattoos.

ND YAG Laser comes in 2 wavelengths, 1064 nm and 532 nm. It is a non-ablative laser, which means that there is no break in skin tissue continuity during the treatment. It is designed to target pigment cells. This specific wavelength are absorbed preferentially by pigments (melanin) and the resultant heat will cause generation and propagation of waves that cause damage to the cells containing pigment. These damaged cells will then be cleared from the site resulting in lightening of the pigmented site.

Function

Q-Switched ND YAG Laser-FG2014 Function
  • Q-Switched Nd:YAG is very effective for the removal of dark tattoos and the safest for skin of color. Using a top-hat beam profile ensures control of homogeneous energy delivery and maximum safety without hot-spots nor any risk of side effects or complication for the patient. The versatility of 5 spot sizes allows to use the ideal parameters for the clearance of dark tattoos. Also, there are other functions like the following.

  • 1.Improve skin tone

  • 2.Reduce rosacea and thread facial vein

  • 3.Reduce facial wrinkles and fine lines

  • 4. Treat sun damage including age spots and brown pigmentation

  • 5. Firming and tightening the skin

  • 6. Stimulate new collagen and elastin tissue production

Advantages

Q-Switched ND YAG Laser-FG2014Advantages
  • 1.Our machine has USA FDA approval.(K161925)

  • 2.Laser. It is the cavity of 1 lamp and 2 rods,which is the most advanced design at present.The lamp is used to emit laser.The rods are used to magnify energy. The light will not polarize. Double laser bars, single cavity. One lamp with 2 rods is very difficult technology to achieve and finally we really made it.

  • 3.we adopt the korea WONTEC beam.

    There is big difference between Korean beam and Chinese beam.

    A.The energy of Chinese beam is not precise.While Korean beam,you rotate the beam(360),the laser energy still keeps the same.

    B.The energy loss of Chinese beam reach to at least 20%.While,Korean beam only loss 10% which has been the best worldwide.

    C.Chinese beam is only 4000RMB/pc,while Korean imported beam cost us 20000RMB/pc.

    D.Korean beam has exquisite appearance.

  • 5. The pulse width is narrow(6-8nm adjustable). Painless treatment and less injury to skin,better result, more comfortable, short downtime.the pulse width of common machine is 14-20ns

  • 6. Maximum Single Energy. The single pulse energy is high, the energy reaches 1300mj, and there is double pulse mode, the energy is 2600mj

  • 7. Spot size. The diameter of spot is 2-10mm adjustable. Uniform energy output even at max spot size.

Before & After

  • Q-Switched ND YAG Laser-FG2014 Before&After
  • Q-Switched ND YAG Laser-FG2014 Treatment results
  • Q-Switched ND YAG Laser-FG2014 Treatment Before&After

Laser Style

Q Swith Nd Yag Laser

Wavelength

1064nm, 532nm

power

1500W

Output Energy

1064nm Single pulse 100-1300MJ

Double pulse 200-2600MJ

532nm Single pulse 50MJ-650MJ

Double pulse 100-1300MJ

Output Frequency

1-10Hz

Spot size

2-10mm adjustable

Pulse duration

5ns

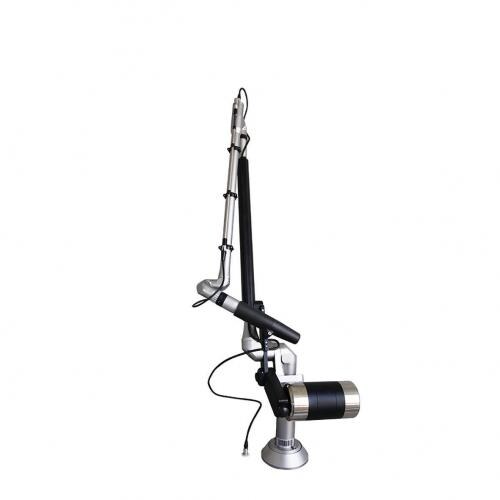

Energy transfer arm

7 articular arm, 90% transmissibility

Voltage/Electric current

220V 50Hz or 110V 60Hz

Machine size

830*330*920mm

Machine weight

60kg
