Q-Switch ND YAG pigmented lesions removal system

Product Description

  • FG2015
  • ADSS
  • by air, by DHL/TNT/FEDEX/UPS express door to door, by sea
  • professional design services with the most reasonable expense
  • Inquiry now

Introduction

Videos

Theory

Q-Switch ND YAG pigmented lesions removal system Theory

Nd:Yag laser is named after the laser medium, Neodymium: yytrium-alumunium-garnet. This laser was specifically designed to help with pigmentation, reckless and also can help removing old tattoos.

ND YAG Laser comes in 2 wavelengths, 1064 nm and 532 nm. It is a non-ablative laser, which means that there is no break in skin tissue continuity during the treatment. It is designed to target pigment cells. This specific wavelength are absorbed preferentially by pigments (melanin) and the resultant heat will cause generation and propagation of waves that cause damage to the cells containing pigment. These damaged cells will then be cleared from the site resulting in lightening of the pigmented site.

Function

Q-Switch ND YAG pigmented lesions removal system Function
  • Q-Switched Nd:YAG is very effective for the removal of dark tattoos and the safest for skin of color. Using a top-hat beam profile ensures control of homogeneous energy delivery and maximum safety without hot-spots nor any risk of side effects or complication for the patient. The versatility of 5 spot sizes allows to use the ideal parameters for the clearance of dark tattoos. Also, there are other functions like the following.

  • 1.Improve skin tone

  • 2.Reduce rosacea and thread facial vein

  • 3.Reduce facial wrinkles and fine lines

  • 4.Treat sun damage including age spots and brown pigmentation

  • 5. Firming and tightening the skin

  • 6. Stimulate new collagen and elastin tissue production

Advantages

Q-Switch ND YAG pigmented lesions removal systemAdvantages
  • 1.Our machine has USA FDA approval.(K161925)

  • 2.Laser. It is the cavity of 2 lamp and 2 rods,which is the most advanced design at present.The lamp is used to emit laser. The rods are used to magnify energy. The light will not polarize. Double laser bars, single cavity.

  • 3.One lamp with 2 rods is very difficult technology to achieve and finally we really made it.we adopt the korea WONTEC beam.

  • 4.There is big difference between Korean beam and Chinese beam.

    A.The energy of Chinese beam is not precise.While Korean beam,you rotate the beam(360°),the laser energy still keeps the same.

    B.The energy loss of Chinese beam reach to at least 20%.While,Korean beam only loss 10% which has been the best worldwide.

    C.Chinese beam is only 4000RMB/pc,while Korean imported beam cost us 20000RMB/pc.

    D.Korean beam has exquisite appearance.

  • 5. The pulse width is narrow(6-8nm adjustable). Painless treatment and less injury to skin,better result, more comfortable, short downtime.the pulse width of common machine is 14-20ns

  • 6. Maximum Single Energy. The single pulse energy is high, the energy reaches 1600mj, and there is double pulse mode, the energy is 3200mj

  • 7. Spot size. The diameter of spot is 2-10mm adjustable. Uniform energy output even at max spot size.

Before & After

  • Q-Switch ND YAG pigmented lesions removal system Before&After
  • Q-Switch ND YAG pigmented lesions removal system Treatment results
  • Q-Switch ND YAG pigmented lesions removal system Treatment Before&After
Laser Style E-optical Q Swith Nd Yag Laser
Wavelength 1064nm,532nm
power 2000W
Output Energy 1064nm   Single pulse 100-1600MJ
Double pulse 200-3200MJ
532nm    Single pulse 50MJ-1000MJ
Double pulse 100-2000MJ
Output Frequency 1-10Hz
Spot size 2-10mm adjustable
Pulse duration 5ns

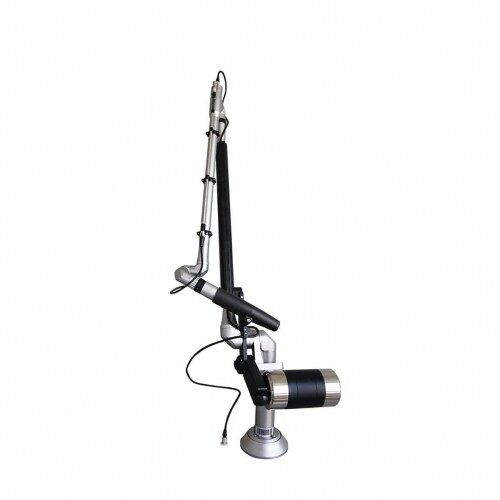

Energy transfer arm 7 articular arm, 90% transmissibility
Voltage/Electric current 220V 50Hz or 110V 60Hz
Machine size 830*330*920mm
Machine weight 60kg
